Oil Mist Collectors
Oil mist recovery and air purification systems are extensively utilised in various industries including mechanical processing, machine tooling, semiconductor and electronics sectors, petrochemical and catering. These systems are designed to be quiet, compact, and energy-efficient, making them suitable for direct installation onto existing machinery. The incorporation of an oil mist collector can significantly enhance air quality and work efficiency in environments where oil mist is prevalent. Our filter systems are user-friendly, facilitating easy disassembly for maintenance and cleaning, helping to reduce costs associated with maintenance and consumables.
Oil Mist Collector Benefits:
- Harmful substances such as oil mist can be produced during mechanical processing, polluting the surrounding air. Our industrial oil mist collectors can filter out these harmful substances and reduce air pollution.
- The use of industrial mist collectors can reduce the risk of workers being exposed to oil mist for a long time, avoiding respiratory diseases and other health issues.
- Our industrial oil mist collectors can reuse the recovered oil mist to reduce waste and energy consumption. Also they filter out solid particles and impurities in the oil mist, reducing the wear and damage of mechanical equipment, and prolonging its service life.

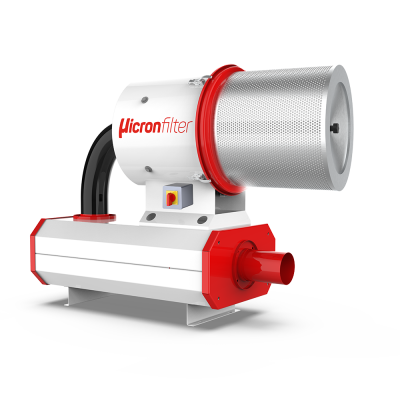

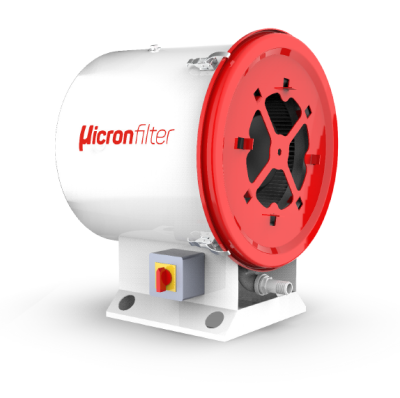

Our Oil Mist Collectors
EFS-001-R
| Power | 0.5HP, 0.37 KW |
|---|---|
| Air Flow | 16 m3/min |
| Air Intake Diameter | 125 m/m |
| Voltage | 220/380 V |
| Electric Current | 1.5/0.87 A |
| Cycle | 50/60 HZ |
| Speed | 2850/3500 rpm |
| Noise | 62 db |
| Weight | 34 kg |
EFS-002-R
| Power | 1HP, 0.75 KW |
|---|---|
| Air Flow | 20 m3/min |
| Air Intake Diameter | 150 m/m |
| Voltage | 220/380 V |
| Electric Current | 2.8/1.62 A |
| Cycle | 50/60 HZ |
| Speed | 2850/3500 rpm |
| Noise | 68 db |
| Weight | 45 kg |
EFS-003-R
| Power | 1.5HP, 1.12 KW |
|---|---|
| Air Flow | 26 m3/min |
| Air Intake Diameter | 150 m/m |
| Voltage | 220/380 V |
| Electric Current | 4.5/2.6 A |
| Cycle | 50/60 HZ |
| Speed | 2850/3500 rpm |
| Noise | 70 db |
| Weight | 53 kg |
Cartridge Filters
300mm Cartridge Filter
- Perfect for water-based cutting applications
- Recommended for use when water moisture and oil mist are generated during machining
600mm Cartridge Filter
- Perfect for oil-based cutting fluid and heavy cutting applications
- Recommended for use when massive oil smoke is generated in addition to water moisture and oil mist during the heavy machinery process
For more information please contact us and also take a look on the download section of our website.
